Factory 50000w 50 Kva 50A 60A Off Grid Hybrid Solar Inverter Generator Inbuilt MPPT Solar Controller

Products > Ungrouped > Factory 50000w 50 Kva 50A 60A Off Grid Hybrid Solar Inverter Generator Inbuilt MPPT Solar Controller
    • 1
    • 2
    • 3
    • 4
    • 5
    • 6

Factory 50000w 50 Kva 50A 60A Off Grid Hybrid Solar Inverter Generator Inbuilt MPPT Solar Controller

Customized logo(Min. Order 100 sets)
Customized packaging(Min. Order 100 sets)
Graphic customization(Min. Order 100 sets)
Supply Ability

  • Supply Ability

  • 200000 Watt/Watts per Day

Packaging & Delivery

  • Packaging Details

    • Factory 50000w 50 kva 50A 60A off grid hybrid solar Inverter generator Inbuilt MPPT Solar Controller
    Wooden Pallet

  • Port

    • Shanghai, Ningbo

  • Picture Example:

  • Lead Time:

  • Quantity(sets)1 - 100000>100000
    Est. Time(days)5To be negotiated
Product Introduction
Model
Solis-25K-5G
Solis-30K-5G
Solis-33K-5G
Solis-36K-5G
Solis-40K-5G
Solis-40K-HV-5G
Solis-50K-HV-5G







Input DC







Max. input power
33kw
39kw
43kw
47kw
52kw
52kw
65kw







Max. input voltage
1000V







Rated voltage
600V
330
330





Start-up voltage
180V
120
120





MPPT voltage range
200-1000V
90-520






Max. input current
26 A / 26 A /26 A


4*26 A





Max. Short Circuit current
40 A / 40 A / 40 A


4*40 A





Number of MPPTs/Max. input strings number
3/6


4/8





Output AC







Rated output power
25kw
30kw
33kw
36kw
40kw
40kw
50kw







Max. apparent output power
27.5kva
33kva
36.3kva
39.6kva
44kva
44kva
55kva







Max. output power
27.5kw
33kw
36.3kw
39.6kw
44kw
44kw
55kw







Rated grid voltage
3/N/PE, 220/380V, 230/400V




3/PE, 480 V



Rated grid frequency
50Hz/60Hz







Rated grid output current
38.0 A / 36.1 A
45.6 A / 43.3 A
50.1 A / 47.6 A
54.7 A / 52.0 A
60.8 A / 57.7 A
48.1 A
60.1 A







Max. output current
41.8A
50.2A
55.1A
60.2A
66.9A
53A
66.2A







Power Factor
>0.99 (Adjustable from 0.8 leading to 0.8 lagging)
33.7
36.5
38.5
41.3
43.3
43.3

THDi
<3%







Efficiency







Max. efficiency
98.8%


98.1%




EU efficiency
98.3%


97.3%




Protection







DC reverse-polarity protection
Yes







Short circuit protection
Yes







Output over current protection
Yes







Surge protection
DC Type II / AC Type II







Grid monitoring
Yes







Anti-islanding protection
Yes







Temperature protection
Yes







Strings monitoring
Optional







I/V Curve scanning
Yes







Integrated PID recovery
Optional







Integrated AFCI (DC arc-fault circuit protection)
Yes*







Integrated DC switch
Optional







General Data







Dimensions (width*height*depth)
647*629*252 mm







Weight
45kg







Topology
Transformerless







Self consumption
<1W (night)







Operating ambient temperature range
-25~60°C







Relative humidity
0~100%







Ingress protection
IP65







Cooling concept
Natural convection







Max. operation altitude
4000m







Grid connection standard
G98 or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 /UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530







Safety/EMC standard
IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4







Features







DC connection
QC4







AC connection
OT terminal







Communication
LCD







Display
RS485, Optional: Wi-Fi, GPRS







Smart Monitoring System

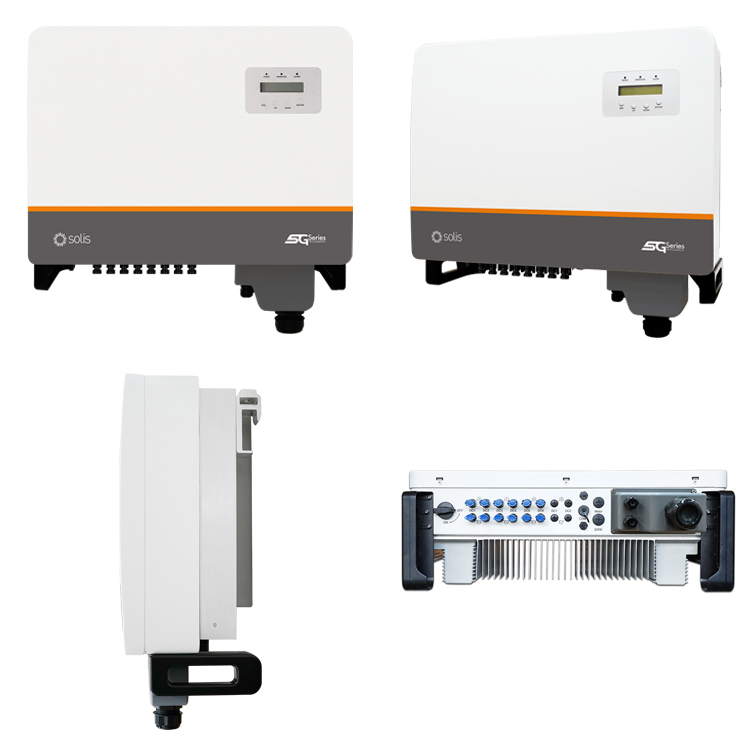

Details Images & Packing
Production line
