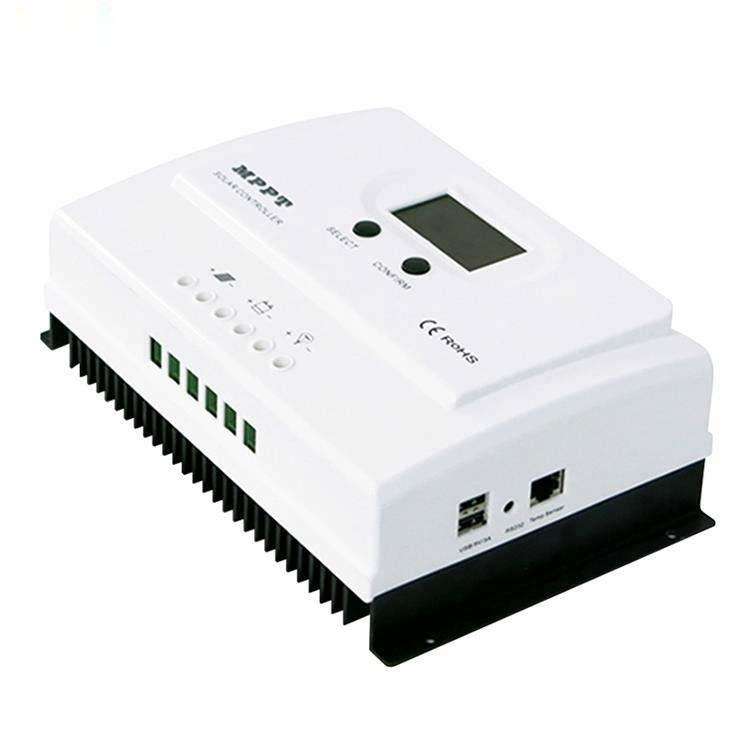

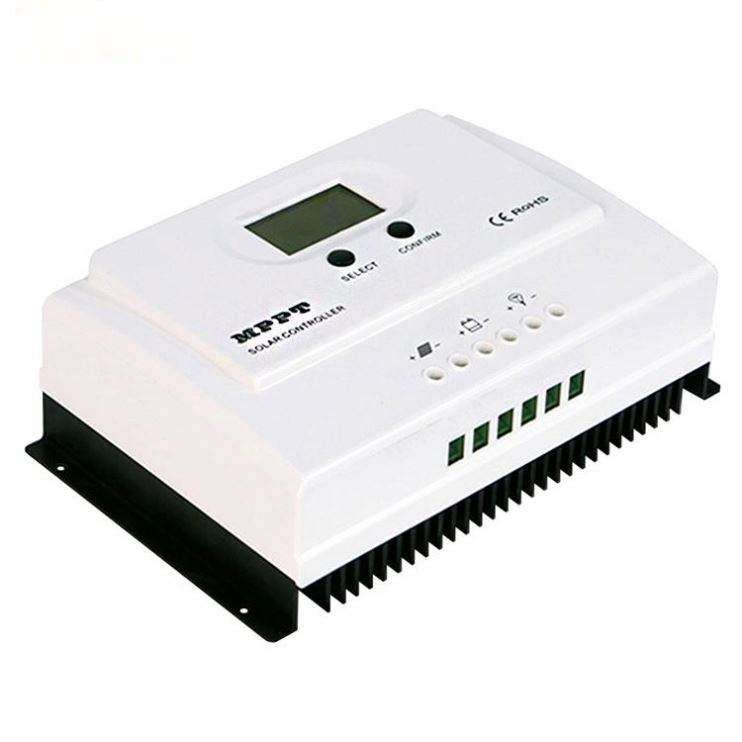

Auto Rated Voltage 12/24V 20A 30A Mppt Solarchargecontroller 60a

Customized logo(Min. Order 100 pieces)
Customized packaging(Min. Order 100 pieces)
Graphic customization(Min. Order 100 pieces)
Supply Ability

  • Supply Ability

  • 5000 Piece/Pieces per Day

Packaging & Delivery

  • Packaging Details

    • Standard Export Package

  • Port

    • Shanghai/Ningbo port

  • Lead Time:

  • Quantity(pieces)1 - 100>100
    Est. Time(days)7To be negotiated
Product Parameter
Master series
Master
48BL-80A
Master
48BL-100A
Master
48BH-80A
Master
96BH-50A


Product category
Controller Properties
MPPT (maximum power point tracking)
MPPT efficiency
≥99.5%
System voltage
Automatic recognition
48V
96V

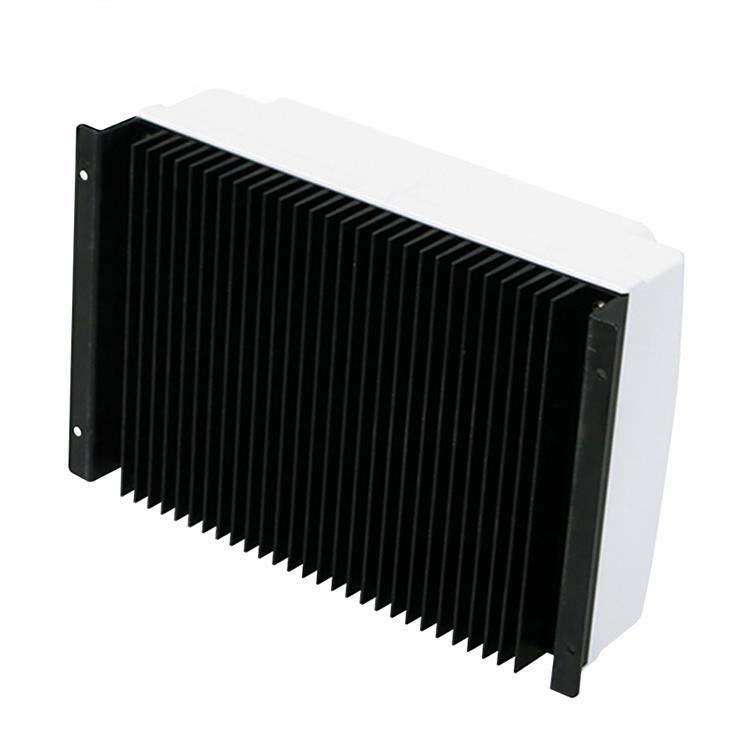

Heat-dissipating method
Air cooling






Input
Characteristics
Max.PV input voltage(VOC)
DC150V
DC300V
Start the charge voltage point
Battery voltage + 3V
Battery voltage + 10V
Low voltage protection
Battery voltage + 2V
Battery voltage + 5V
Over voltage protection
DC150V
DC300V



Rated PV power
12V system
1040W
1300W
-
-
24V system
2080W
2600W
-
-
36V system
3120W
3900W
-
-
48V system
4160W
5200W
4160W
-
96V system
-
-
-
5200W

Charge Characteristics
Selectable Battery Types
(Default Gel battery)
Sealed lead acid, Gel battery, Flooded
(Other types of the batteries also can be defined)
Charge rated current
80A
100A
80A
50A
Charge Method
3-Stage: constant current(fast charging)-
constant voltage-floating charge

LOAD Characteristics
Load voltage
The same as the battery voltage
Load rated current
80A
100A
80A
50A
Load control mode
On\Off mode, PV voltage control mode,
Dual-time control mode, PV + Time control mode

Display &
Comm.

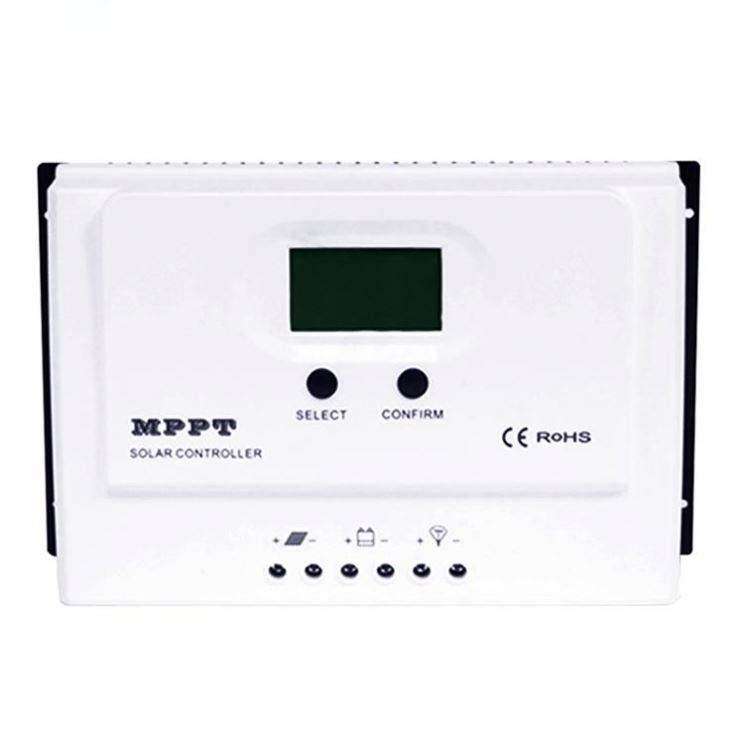

Display mode
LCD (128*64 dots) &backlight

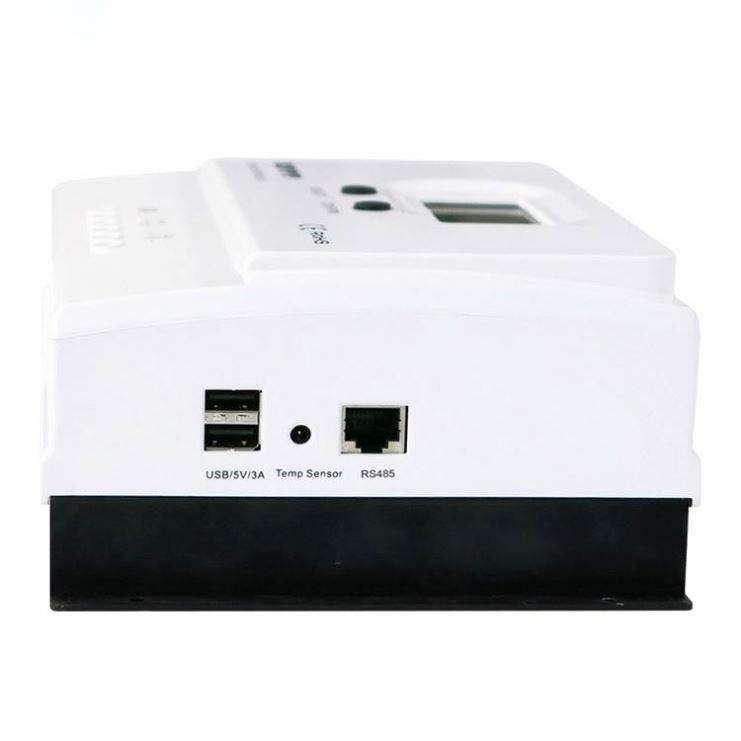

Communication mode
8-pin RJ45 port/RS485/support PC software monitoring/
support WiFi module to realize APP cloud monitoring





Other Parameters
Protect function
Input-output over \ under voltage protection,
Prevention of connection reverse protection etc.
Operation Temperature
-20℃~+50℃
Storage Temperature
-40℃~+75℃
IP(Ingress protection)
IP43
Max. connection size
50mm2
Net Weight (kg)
7.1
Gross Weight (kg)
8.8
Product Size(mm)
420*280*95
Packing Size(mm)
510*368*210
Payment



Payment Term


T/T
EXW

 30% T/T in advance, balance paid before dispatch
FOB
CNF(CFR)
30% T/T in advance,
balance paid againist copy of B/L
CIF
L/C , Money Gram ,   Western Union ,   Paypal
Delivery Time
7-10 working days after down payment received
