Home Application Srne Solar Charge Controller 12/24/36/48v Solar Mppt Controller

Customized logo(Min. Order 100 pieces)
Customized packaging(Min. Order 100 pieces)
Graphic customization(Min. Order 100 pieces)
Supply Ability

  • Supply Ability

  • 100 Piece/Pieces per Day

Packaging & Delivery

  • Packaging Details

    • solar charge controller in wooden case

  • Port

    • Shanghai/Ningbo

  • Lead Time:

  • Quantity(pieces)1 - 10000>10000
    Est. Time(days)7To be negotiated
Product Parameter
Master series


Master
48BL-80A
Master
48BL-100A
Master
48BH-80A
Master
96BH-50A





Product category
Controller Properties

MPPT (maximum power point tracking)





MPPT efficiency

≥99.5%




System voltage

Automatic recognition

48V
96V



Heat-dissipating method

Air cooling









Input
Characteristics
Max.PV input voltage(VOC)

DC150V

DC300V




Start the charge voltage point

Battery voltage + 3V

Battery voltage + 10V



Low voltage protection

Battery voltage + 2V

Battery voltage + 5V



Over voltage protection

DC150V

DC300V






Rated PV power
12V system
1040W
1300W
-
-






24V system
2080W
2600W
-
-





36V system
3120W
3900W
-
-





48V system
4160W
5200W
4160W
-





96V system
-
-
-
5200W




Charge Characteristics
Selectable Battery Types
(Default Gel battery)

Sealed lead acid, Gel battery, Flooded
(Other types of the batteries also can be defined)





Charge rated current

80A
100A
80A
50A




Charge Method

3-Stage: constant current(fast charging)-
constant voltage-floating charge




LOAD Characteristics
Load voltage

The same as the battery voltage





Load rated current

80A
100A
80A
50A




Load control mode

On\Off mode, PV voltage control mode,
Dual-time control mode, PV + Time control mode




Display &
Comm.
Display mode

LCD (128*64 dots) &backlight





Communication mode

8-pin RJ45 port/RS485/support PC software monitoring/
support WiFi module to realize APP cloud monitoring








Other Parameters
Protect function

Input-output over \ under voltage protection,
Prevention of connection reverse protection etc.





Operation Temperature

-20℃~+50℃




Storage Temperature

-40℃~+75℃




IP(Ingress protection)

IP43




Max. connection size

50mm2




Net Weight (kg)

7.1




Gross Weight (kg)

8.8




Product Size(mm)

420*280*95




Packing Size(mm)

510*368*210

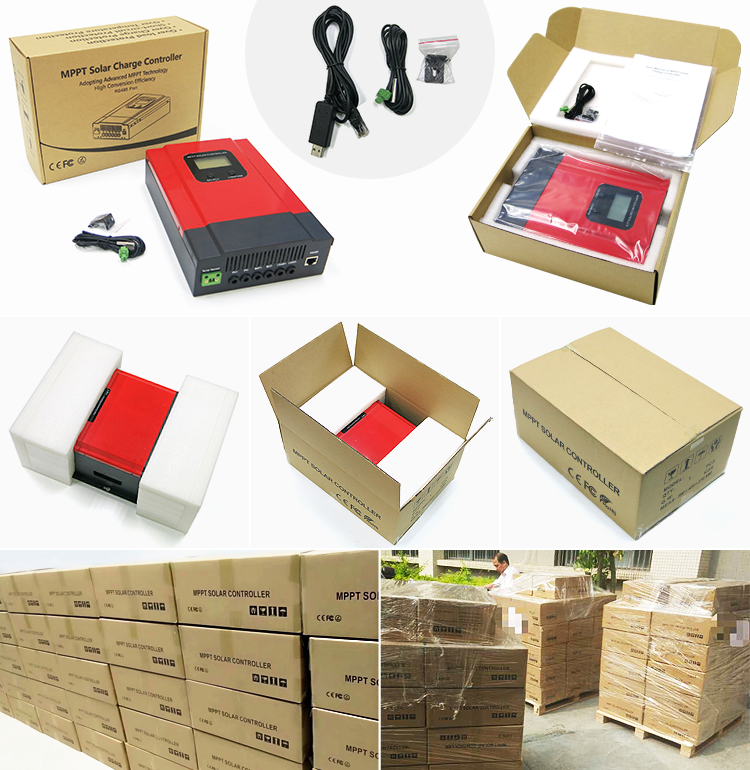

Packing&Delivery



Independent R&D team

More than 30 R&D team for Smart PV System, 30+ Developed invention patents,  annually investment amount over 1,500,000USD

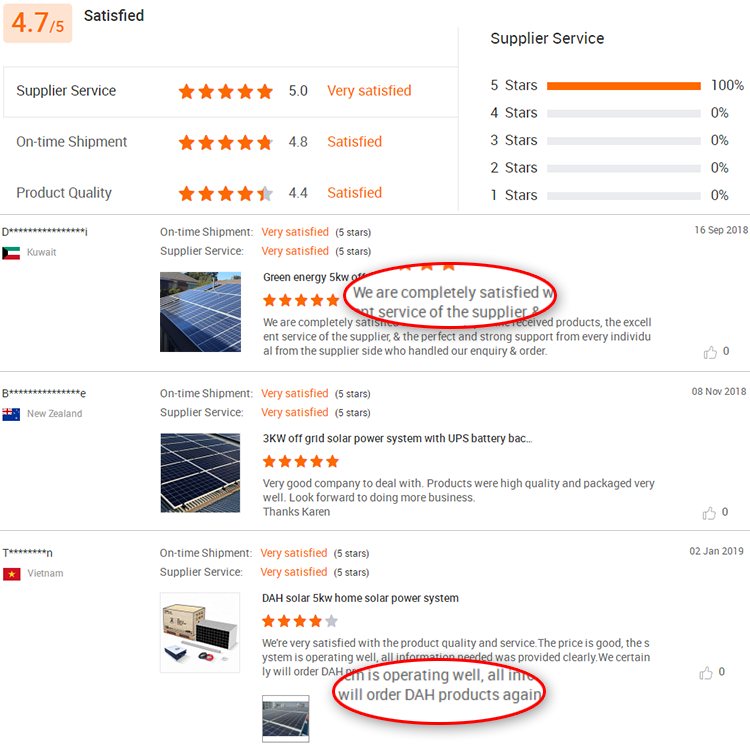

World-Wide Reviews

WORLD -WIDE CUSTOMERS COMMENTS & FEEDBACk







Pay Attention ~

1.Factory Direct Price

2.NICE Quality.

3.QUICK SHIPPING Fastest 7 DAYS.

4.No MOQ,Small Order Welcome.

5.Customized Design,suppport OEM for all orders.

6.Support REFUND Money if the quality is not satisfactory.


7.PAYMENT Support T/T, L/C, Credit Card, E-checking, Western Union.



Payment



Payment Term


T/T
EXW

 30% T/T in advance, balance paid before dispatch





FOB



CNF(CFR)
30% T/T in advance,
balance paid againist copy of B/L



CIF


L/C , Money Gram ,   Western Union ,   Paypal


Delivery Time
7-10 working days after down payment received
