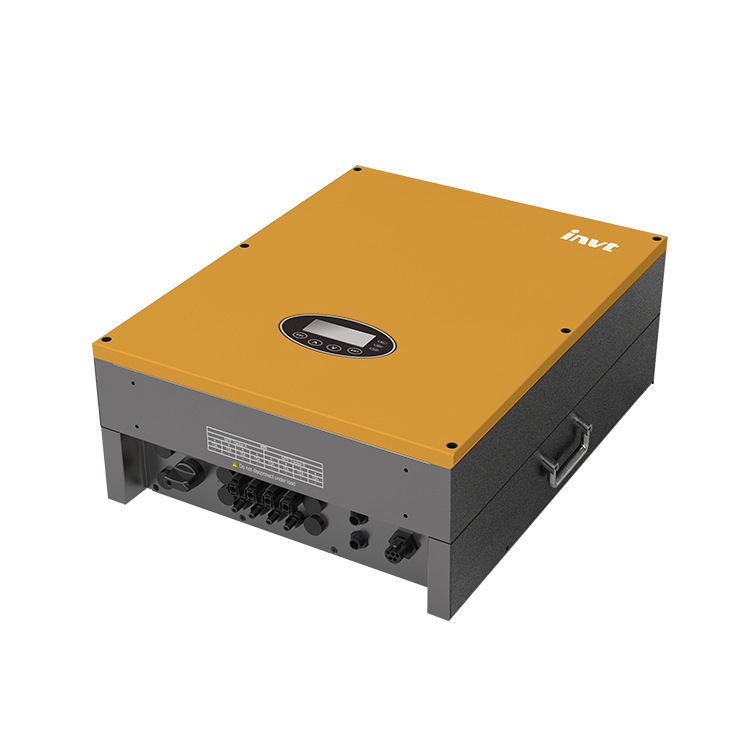

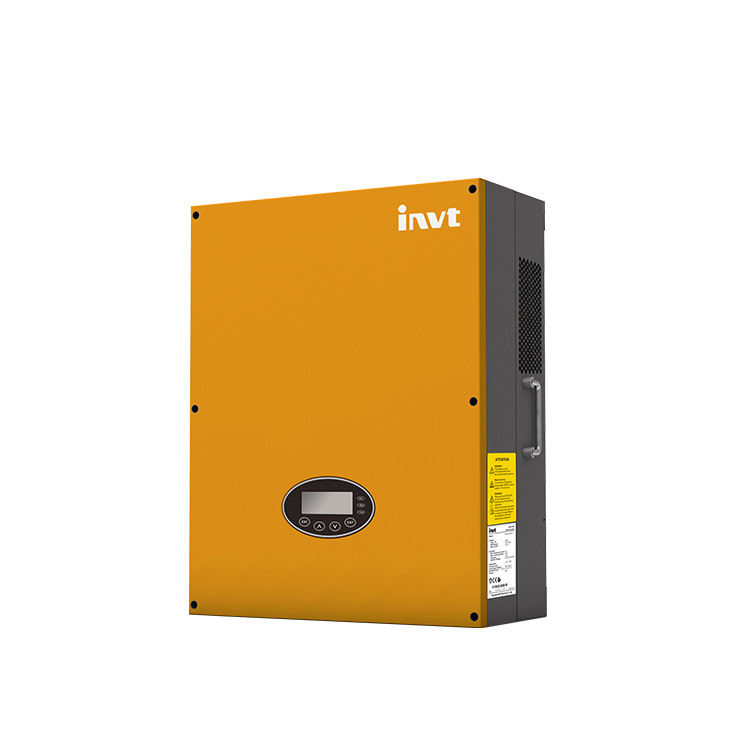

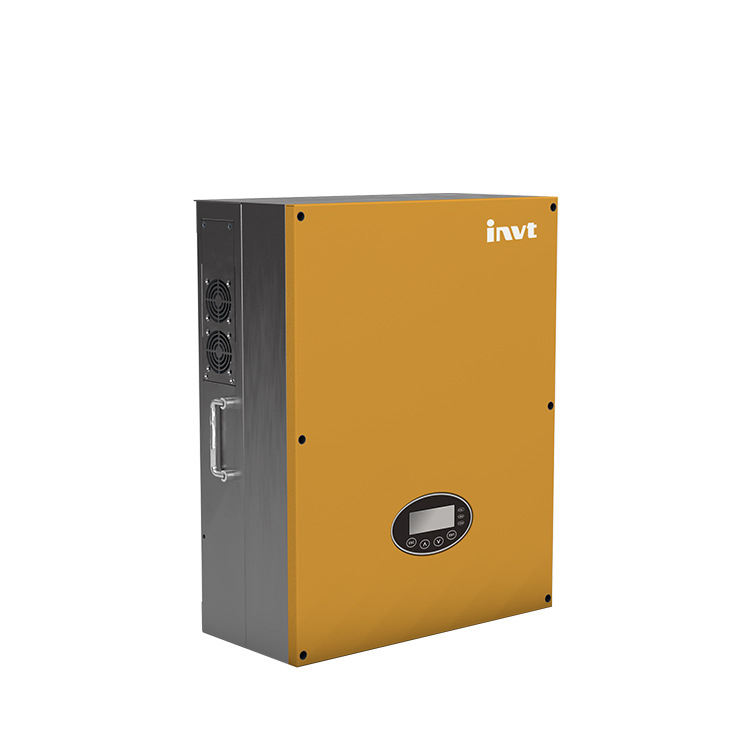

Invt Three Phase Grid-tied Solar Inverter 25kw 30kw 33kw 35kw Generator Inverter With Mppt

Products > Inverter > Invt Three Phase Grid-tied Solar Inverter 25kw 30kw 33kw 35kw Generator Inverter With Mppt

Invt Three Phase Grid-tied Solar Inverter 25kw 30kw 33kw 35kw Generator Inverter With Mppt

Customized logo(Min. Order 10 sets)
Customized packaging(Min. Order 10 sets)
Graphic customization(Min. Order 10 sets)

Product details

Product Introduction

	BG25KTR	BG30KTR	BG33KTR	BG35KTR
Input (DC)
Max. DC input power (W)	28000	33000	36000	38000
Max. DC input voltage (V)	1000						500
Starting voltage (V) / Min. operation voltage (V)	300/280					300/280
MPPT range (V)	280-800				80-410	100-410	120-450
Number of MPPT / String per MPPT	2/3					2/4
Max. DC current (A) per MPPT x Number of MPPT	30*2	33*2	33*2	33*2
Output (AC)
Rated output power (W)	25000	30000	33000	35000
Max. AC output current (A)	40	48	48	48
Max. output power (W) (PF=1)	25000	30000	33000	35000
Max. apparent power（VA）	25000	30000	33000	35000
Power factor	-0.8~+0.8(adjustable)
THDi	<3% (at rated power)
Nominal output voltage (V) / Frequency	230/400;220/380, 3L+N+PE/3L+PE, 50/60
Efficiency
Max. efficiency	98.40%	98.50%	98.50%	98.50%
Euro-efficiency	98%	98%	98.10%	98.10%
MPPT efficiency	99.9%
Protection
Protection	DC breaker, AC short-circuit protection, Over current protection, Over voltage protection, Isolation protection, RCD, Surge protection, Anti-island protection, Over-temperature protection, Ground fault monitoring, etc.
General data
Display	3.5 inches LCD display, support backlit display
LCD language	English, Chinese, German, Dutch
Communication interface	RS485(standard); WiFi、Ethernet(optional)
Cooling method	Smart cooling
Protection degree	IP65
Night self-consumption (W)	<0.5
Topology	Transformerless
Operating temperature range	-25°C~+60°C(derate after 45°C)
Relative humidity	0~100%
Dimension (H x W x D mm)	660x520x250
Weight (kg)	52
Grid qualififi cation	DIN VDE 0126-1-1:2013, VDE-AR-N 4105:2011, DIN VDE V 0124-100:2012, IEC 61727(IEC62116), AS/NZS 4777.2:2015, NB/T32004-2013, IEC 60068-2-1:2007, IEC 60068-2-2:2007, IEC 60068-2-14:2009, IEC 60068-2-30:2005, IEC 61683:1999, C10/11:2012, G59/3-2:2015, EN 50549-1, Leader, ZVRT, PEA
Safety certififi cate / EMC certififi cates	IEC 62109-1:2010, IEC 62109-2:2011, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011
Warranty (years)	5(standard)/10(optional)
