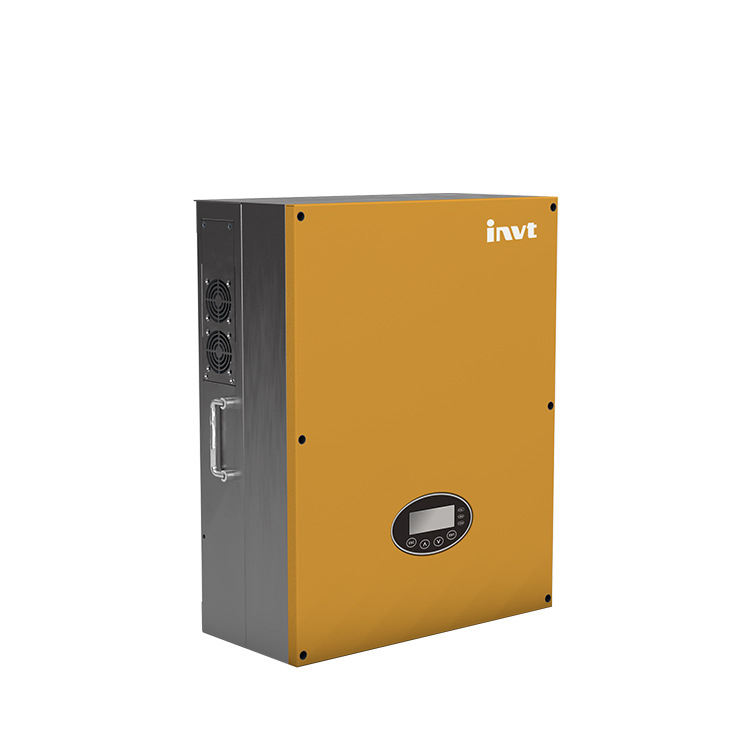

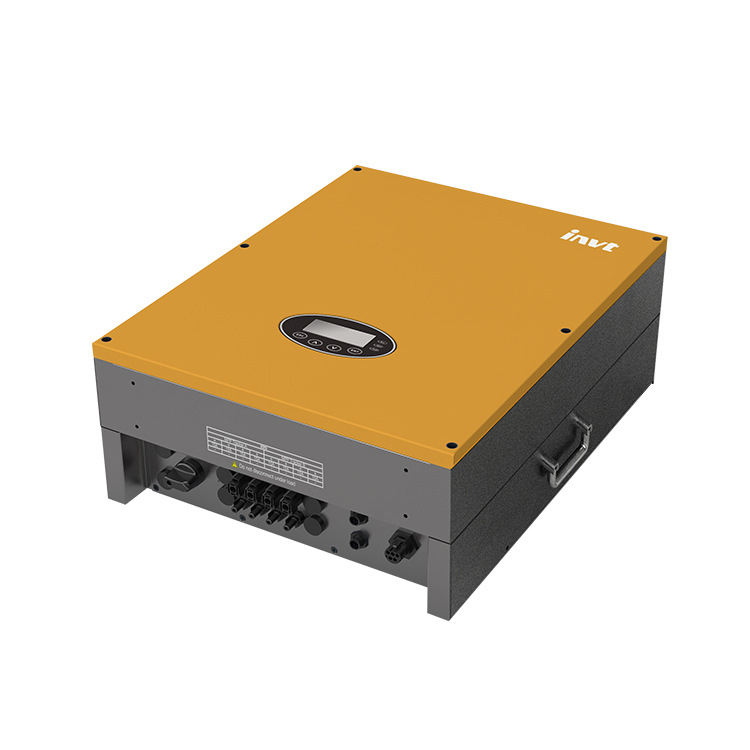

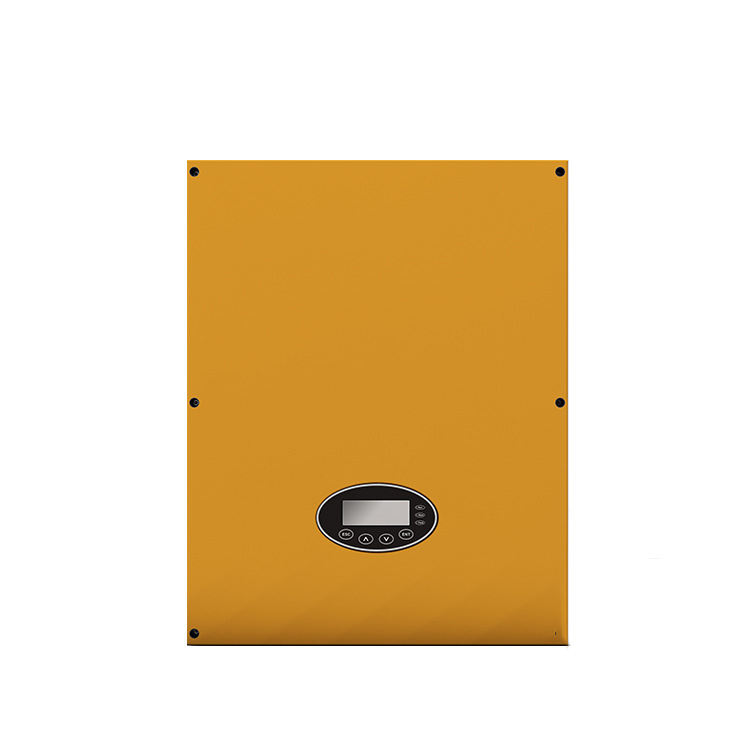

Commercial Design BG 12-20kw Three Phase Inverters 12kw 15kw 17kw 20kw Solar Power Inverter

Products > Inverter > Commercial Design BG 12-20kw Three Phase Inverters 12kw 15kw 17kw 20kw Solar Power Inverter

Commercial Design BG 12-20kw Three Phase Inverters 12kw 15kw 17kw 20kw Solar Power Inverter

Customized logo(Min. Order 10 sets)
Customized packaging(Min. Order 10 sets)
Graphic customization(Min. Order 10 sets)

Product details

Product Introduction

	BG12KTR	BG15KTR	BG17KTR	BG20KTR
Input (DC)
Max. DC input power (W)	14000	18000	19500	20500
Max. DC input voltage (V)	1000						500
Starting voltage (V) / Min. operation voltage (V)	200/180					300/200
MPPT range (V)	180-800				80-410	100-410	120-450
Number of MPPT / String per MPPT	2/2
Max. DC current (A) per MPPT x Number of MPPT	19*2	21*2	23*2	25*2
Output (AC)
Rated output power (W)	12000	15000	17000	20000
Max. AC output current (A)	19.3	24.1	27.3	32
Max. output power (W) (PF=1)	12000	15000	17000	20000
Max. apparent power（VA）	12000	15000	17000	20000
Power factor	-0.8~+0.8(adjustable)
THDi	<3% (at rated power)
Nominal output voltage (V) / Frequency	230/400;220/380, 3L+N+PE/3L+PE, 50/60
Efficiency
Max. efficiency	98.20%	98.20%	98.30%	98.40%
Euro-efficiency	97.60%	97.80%	97.80%	98%
MPPT efficiency	99.9%
Protection
Protection	DC breaker, AC short-circuit protection, Over current protection, Over voltage protection, Isolation protection, RCD, Surge protection, Anti-island protection, Over-temperature protection, Ground fault monitoring, etc.
General data
Display	3.5 inches LCD display, support backlit display
LCD language	English, Chinese, German, Dutch
Communication interface	RS485(standard); WiFi、Ethernet(optional)
Cooling method	Smart cooling
Protection degree	IP65
Night self-consumption (W)	<0.5
Topology	Transformerless
Operating temperature range	-25°C~+60°C(derate after 45°C)
Relative humidity	0~100%
Dimension (H x W x D mm)	610x480x204
Weight (kg)	38
Grid qualififi cation	DIN VDE 0126-1-1:2013, VDE-AR-N 4105:2011, DIN VDE V 0124-100:2012, IEC 61727(IEC62116), AS/NZS 4777.2:2015, NB/T32004-2013, IEC 60068-2-1:2007, IEC 60068-2-2:2007, IEC 60068-2-14:2009, IEC 60068-2-30:2005, IEC 61683:1999, C10/11:2012
Safety certififi cate / EMC certififi cates	IEC 62109-1:2010, IEC 62109-2:2011, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011
Warranty (years)	5(standard)/10(optional)
