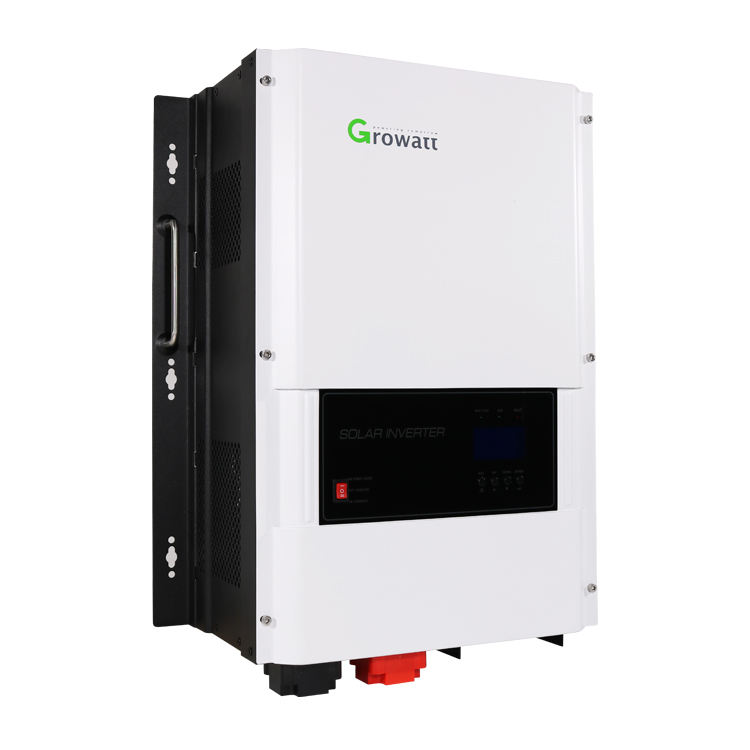

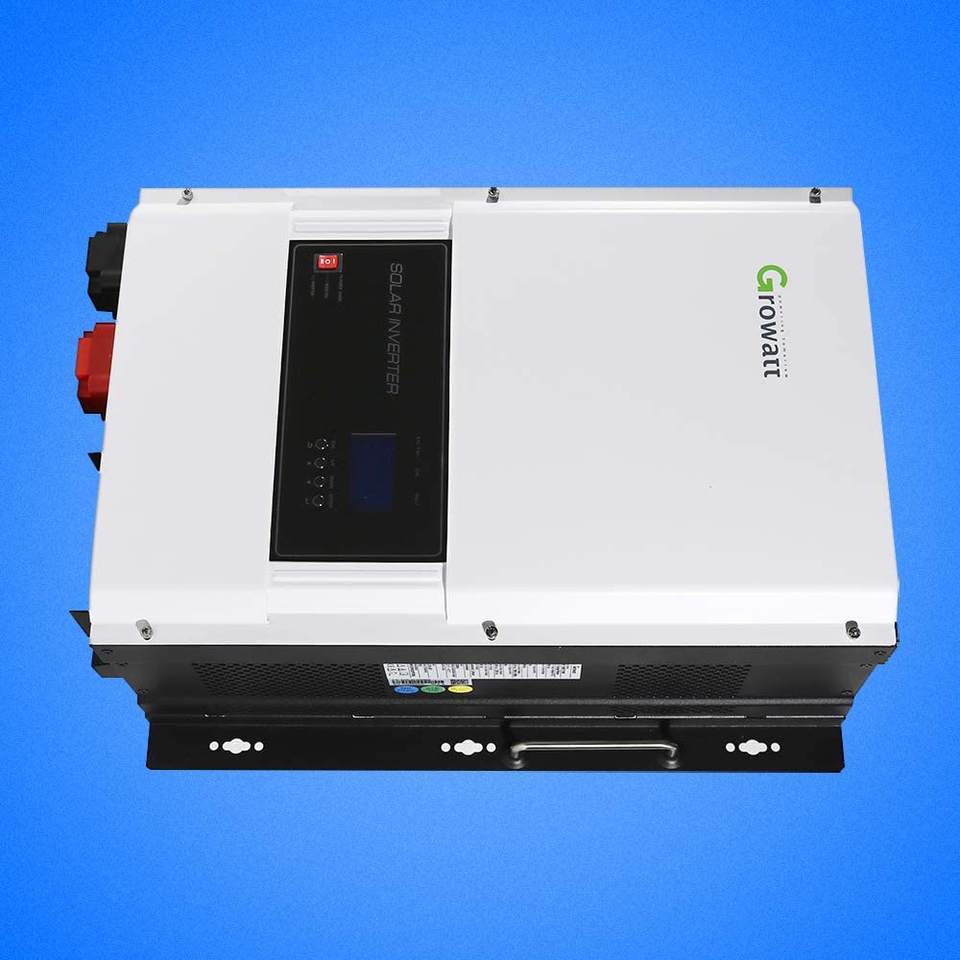

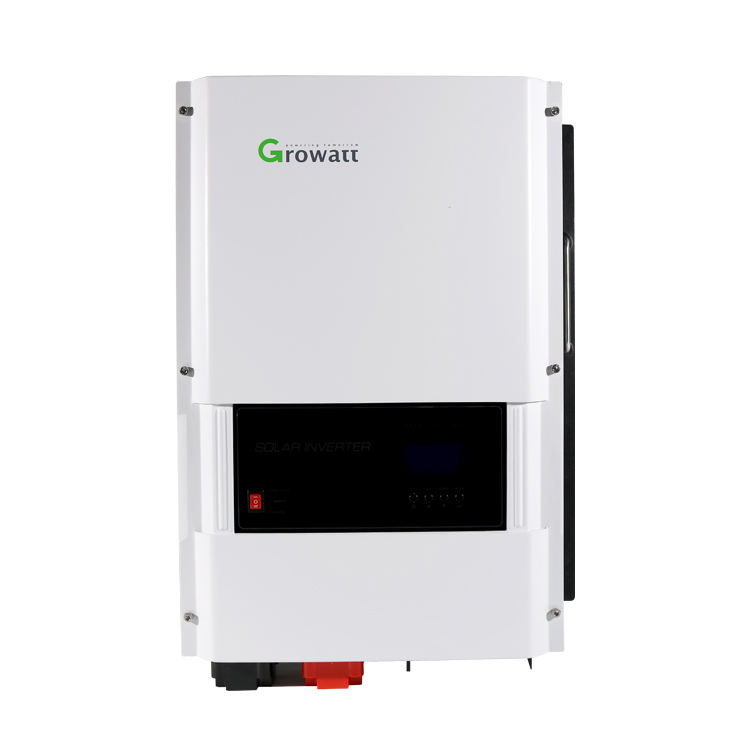

7000w Solar Inverter Generator 3 Phase 7kw 8kw 10kw Mppt Hybrid Inverter Dc 48v On Off System Inverters
7000w Solar Inverter Generator 3 Phase 7kw 8kw 10kw Mppt Hybrid Inverter Dc 48v On Off System Inverters
Customized logo(Min. Order 100 sets)
Customized packaging(Min. Order 100 sets)
Graphic customization(Min. Order 100 sets)
Product Introduction
Smart Monitoring System
Datasheet | SPH 4000TL3 BHUP | SPH 5000TL3 BHUP | SPH 6000TL3 BHUP | SPH 7000TL3 BHUP | SPH 8000TL3 BHUP | SPH 10000TL3 BHUP | ||||||
lnput Data (DC) | ||||||||||||
Max. recommended PV power (for module STC) | 6000W | 7500W | 9000W | 10500W | 12000W | 15000W | ||||||
Max. DC voltage | 1000 | 600V | ||||||||||
Start voltage | 120V | 100V | ||||||||||
MPP voltage range | 120V-1000V/600V | 60-550V | 60-550V | |||||||||
No. of MPP trackers | 2 | 2 | 3 | |||||||||
No. of PV strings per MPP tracker | 1 | 1/2 | 1/1/2 | |||||||||
Max. input current per MPP tracker | 13.5A | /27A | 13.5A/13.5A/27A | |||||||||
Max. short-circuit current per MPP tracker | 16.9A | /33.8A | 16.9A/16.9A/33.8A | |||||||||
Output data (AC) | ||||||||||||
AC nominal power | 4000W | 5000W | 6000W | 7000W | 8000W | 10000W | ||||||
Max. AC apparent power | 4000VA | 5000VA | 6000VA | 7000VA | 8000VA | 10000VA | ||||||
Nominal AC voltage（range*) | 230V/400V (310~476V) | 220V/160-300V | ||||||||||
AC grid frequency（range*） | 50/60 Hz (45-55Hz/55-65 Hz) | |||||||||||
Max. output current | 6.1A | 7.6A | 9.1A | 10.6A | 12.1A | 15.2A | ||||||
Adjustable power factor | 0.8leading…0.8lagging | 0.8leading…0.8lagging | ||||||||||
THDi | <3% | |||||||||||
AC grid connection type | 3W+N+PE | |||||||||||
Battery data (DC) | ||||||||||||
Battery voltage range | 100~550V | |||||||||||
Max charging and discharging current | 25A | |||||||||||
Continuous charging and discharging power | 4000W | 5000W | 6000W | 7000W | 8000W | 10000W | ||||||
Type of battery | Lithium battery | |||||||||||
Backup power(AC) | ||||||||||||
Max. AC output power | 4000W | 5000W | 6000W | 7000W | 8000W | 10000W | ||||||
Max. AC apparent power | 4000VA | 5000VA | 6000VA | 7000VA | 8000VA | 10000VA | ||||||
Max. output current | 6.1A | 7.6A | 9.1A | 10.6A | 12.1A | 15.6A | ||||||
Nominal AC output voltage | 230V/400V | |||||||||||
Nominal AC output frequency | 50/60HZ | |||||||||||
THDv | <3% | |||||||||||
Switch time | <10ms | |||||||||||
Efficiency | ||||||||||||
Max.efficiency | 97.6% | 97.8% | 98% | 98.2% | ||||||||
European efficiency | 97% | 97.2% | 97.3% | 97.4 | 97.4% | 97.5% | ||||||
Protection Devices | ||||||||||||
DC reverse polarity protection | yes | yes | ||||||||||
DC switch | yes | yes | ||||||||||
AC/DC surge protection | Type III / Type II | |||||||||||
Insulation resistance monitoring | yes | |||||||||||
AC short-circuit protection | yes | yes | ||||||||||
Ground fault monitoring | yes | yes | ||||||||||
Grid monitoring | yes | yes | ||||||||||
Anti-islanding protection | yes | yes | ||||||||||
Residual-current monitoring unit | yes | yes | ||||||||||
AFCI protection | Optional | |||||||||||
General Data | ||||||||||||
Dimensions (W / H / D) | 505/453/198mm | 425/387/180mm | ||||||||||
Weight | 30KG | 18.2kg | ||||||||||
Operating temperature range | –25°C ... +60°C | |||||||||||
Nighttime power consumption | <13W | |||||||||||
Topology | Transformerless | |||||||||||
Cooling | Natural | convection | ||||||||||
Protection degree | IP65 | |||||||||||
Relative humidity | 0-100% | |||||||||||
Altitude | 3000m | |||||||||||
DC connection | H4/QC4(Optional) | |||||||||||
AC connection | Connector | Cable gland +OT terminal | ||||||||||
Display | LCD+LED | OLED+LED/WIFI+APP | ||||||||||
Interfaces: RS485 / USB/Wi-Fi/ GPRS/ RF/LAN | Yes | Yes/Yes/Optional/Optional/Optional /Optional | ||||||||||
Warranty: 5 years / 10 years | Yes / Optional | Yes /Optional | ||||||||||
Safe Packaging
Production line

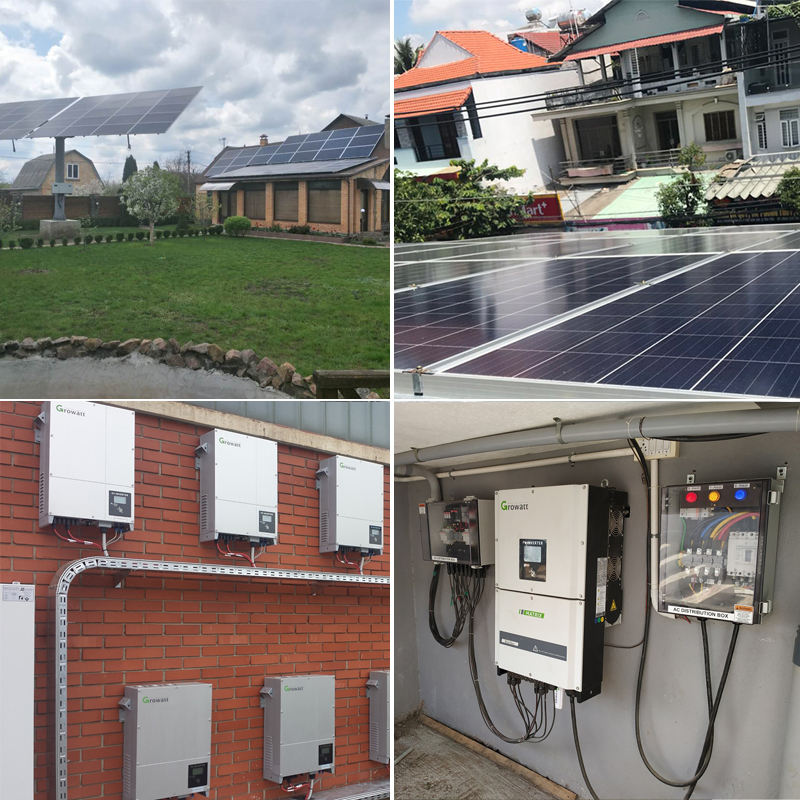

Project Cases
